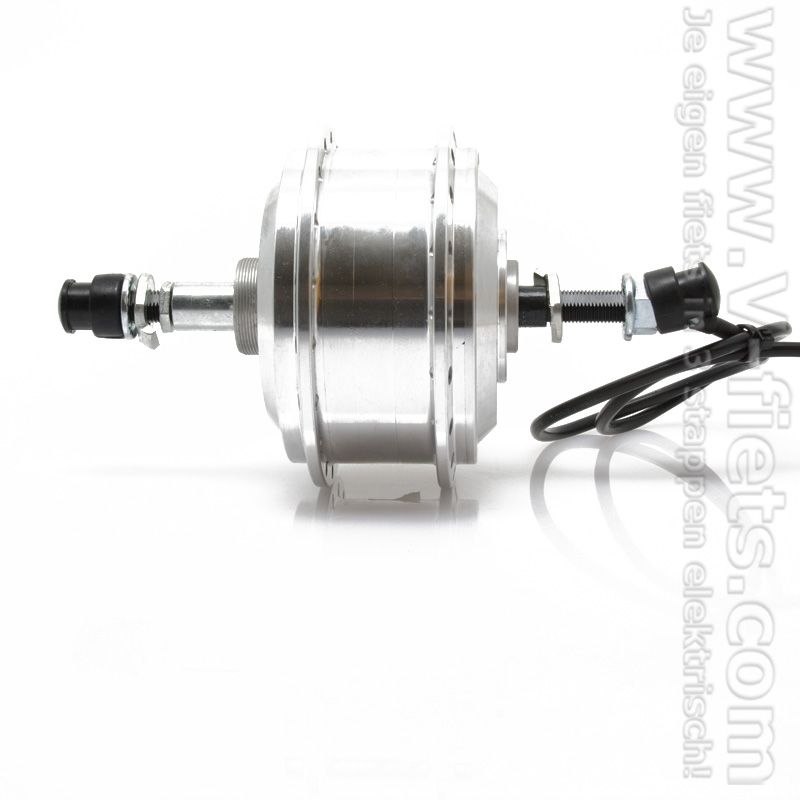

V-MINI-PRO Rear Hub Motor 1-9SP235RPM 20"
Safe & Secure
Description
A strong motor but small motor
The V-MINI PRO is the ideal motor for long distance cyclist, the motor requires more than normal. Due to its lightweight design and lightweight freewheel mechanism senses the motor light, and thus achieves a higher range on one battery charge.
The V-MINI PRO is suitable for mounting the standard Shimano disc Especially suitable for light and heavier bikes.
This is a 20 "rim and laced delivered and is suited for a bike with rim brakes or disc brakes
Write Your Own Review
Specifications
Product Details
- Additional weight on bike
- 2,4 kg
- Width
- 80 mm
- Diameter
- 180mm
Technische eigenschappen
- Voltage
- 36V
- Torque range
- 30 - 50Nm
- Maximum current
- 20A
- Suitable for more than one person bicycle
- Yes, but not optimal
- Material
- Alu
- Directional rotation
- Yes
- Maximum load
- High
- Motor Torque
- 25Nm
- Suitable for torque at low speeds
- Yes
- Replaceable
- Yes
- Voltage range
- 24 - 36V
- Efficiency
- 81%
- Motor type
- Indirect Drive, Outrunner
- Type controller
- Block and sinus wave
- Hall sensor
- No
- Rated motor RPM
- 235rpm
- Rated power
- 250Watt
Fysieke eigenschappen
- Possible number of gears
- 9
- Type of assembly
- Pinion
- Axle length
- 160mm
- Type of cable (wires)
- 3
- Axle diameter
- 12,5mm / 10mm
- Mounting width motor
- 135mm / 140mm
- Suitable for brake type
- Cantilever brake, Disc brake (Shimano)
- Number of spoke holes
- 36
- Suitable for wheel sizes
- 20"
- Suitable for Rollerbrake
- No
Geschikt voor
- Motor configured for
- Rear wheel
Gebruik
- Configuration for
- Hand bike, Recumbent bike
