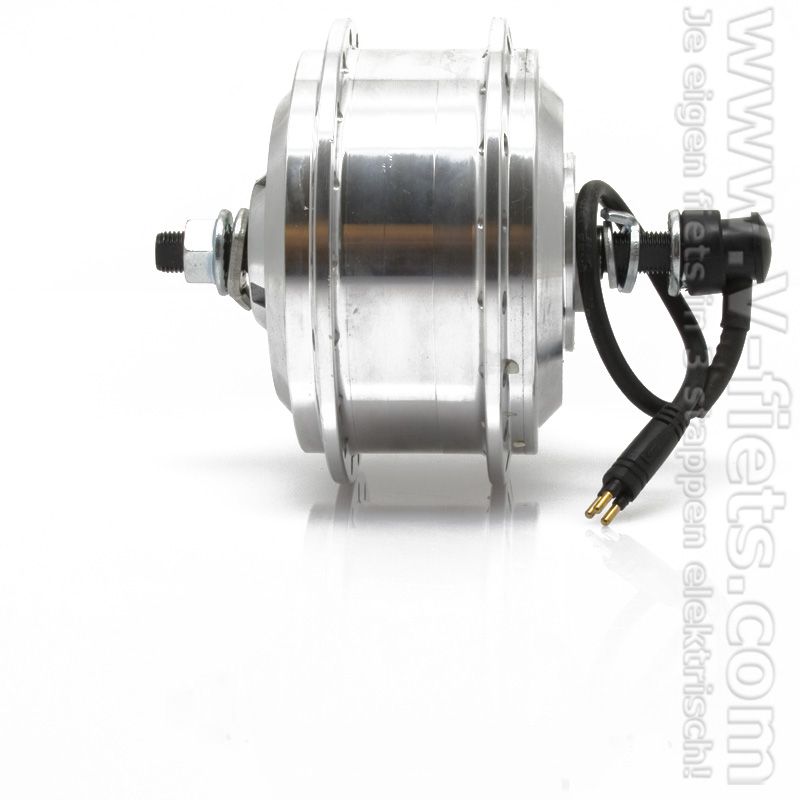

V-MINI-PRO Front Hub Motor Wheel 190RPM 28"

SKU
VFPROVW19028inch
€199.00
Add to Wish List
Description

A strong motor but small motor

The V-MINI PRO is the ideal motor for long distance cyclist, the motor requires more than normal. Due to its lightweight design and lightweight freewheel mechanism senses the motor light, and thus achieves a higher range on one battery charge.

The V-MINI PRO is suitable for mounting the standard Shimano disc Especially suitable for light and heavier bikes.

This is supplied complete with rim and is suitable for example for the bike with rim brakes or disc brakes

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Specifications
Product Details
Additional weight on bike
2,4 kg
Diameter
180mm
Technische eigenschappen
Voltage
36V
Torque range
30 - 50Nm
Maximum current
20A
Suitable for more than one person bicycle
Yes, but not optimal
Material
Alu
Directional rotation
Yes
Maximum load
High
Motor Torque
30Nm
Suitable for torque at low speeds
Yes
Voltage range
24 - 36V
Efficiency
81%
Motor type
Indirect Drive, Outrunner
Type controller
Block and sinus wave
Hall sensor
No
Rated motor RPM
190rpm
Rated power
250Watt
Fysieke eigenschappen
Suitable for brake type
Cantilever brake, Disc brake (Shimano)
Number of spoke holes
36
Suitable for wheel sizes
28"
Suitable for Rollerbrake
No
