Rover Motor in 24" ANDRA40 (RHT3525)

SKU
VFRoverexclvelg
€395.00
Add to Wish List
Description

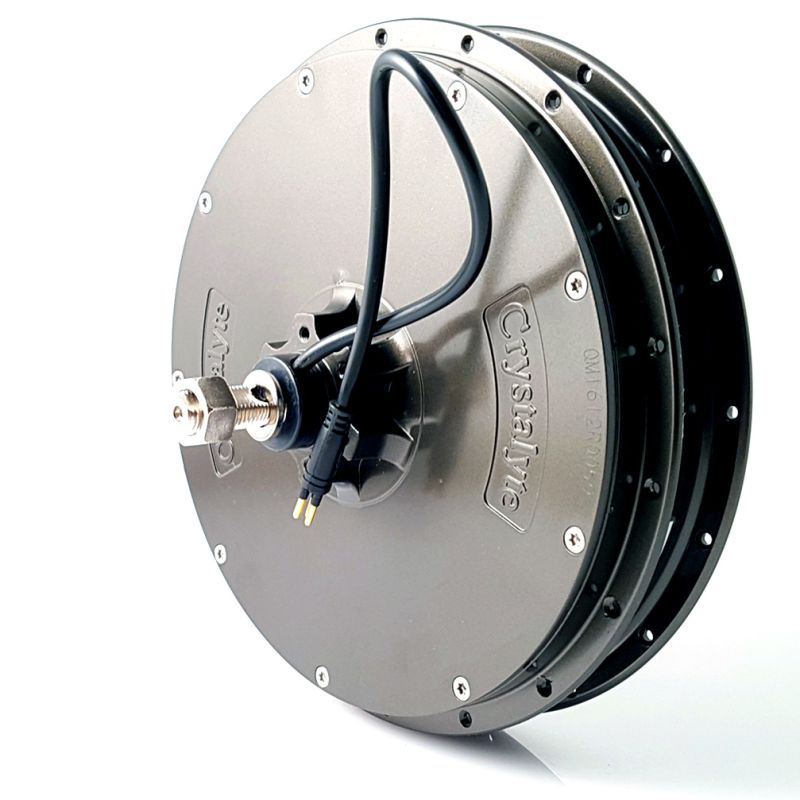

The Crystalyte front wheel hub motor is a hub motor with an extremely high torque (great force) . Suitable for all types of bicycles, but is especially into its own with a three -wheeler or bicycle that need more power . This hub motor comes without rims and spokes and is suited for the bike with rim- or disc brakes .
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Specifications
Product Details
Additional weight on bike
7 kg
Width
80 mm
Diameter
228 mm
Brand
Crystalyte
warranty extensible
Yes
Warranty
2 years, carry- in warranty
Technische eigenschappen
Torque range
50 - 70Nm
Maximum supported speed
25 km/hr
Maximum current
20A
Suitable for more than one person bicycle
Yes
Material
Alu
Directional rotation
No
Maximum load
Extra high
Suitable for torque at low speeds
Yes, but not optimal
Replaceable
Yes
Voltage range
24 - 36V
Efficiency
+85%
Motor type
Direct Drive, Outrunner
Type controller
Block wave
Hall sensor
No
Rated motor RPM
190rpm
Rated power
250Watt
Number of magnets
46
Fysieke eigenschappen
Possible number of gears
9
Type of assembly
Pinion
Cable length
40cm
Axle length
190mm
Type of cable (wires)
8
Axle diameter
14,5mm / 10mm
Mounting width motor
135mm / 140mm
Color
Grey
Suitable for brake type
Cantilever brake, Disc brake (Shimano)
Number of spoke holes
36
Suitable for wheel sizes
20", 22", 24", 26", +28", 28"
Suitable for Rollerbrake
No
Geschikt voor
Motor configured for
(Sub) frame, Rear wheel
Gebruik
Configuration for
Bicycle, Bicycles and light vehicles, BSO bike, Cargobike, Child transport, Daycare bike, Hand bike, Hybrid bike, Mountain bike, Recumbent bike, Special Aid bike, Tandem bike
