Description

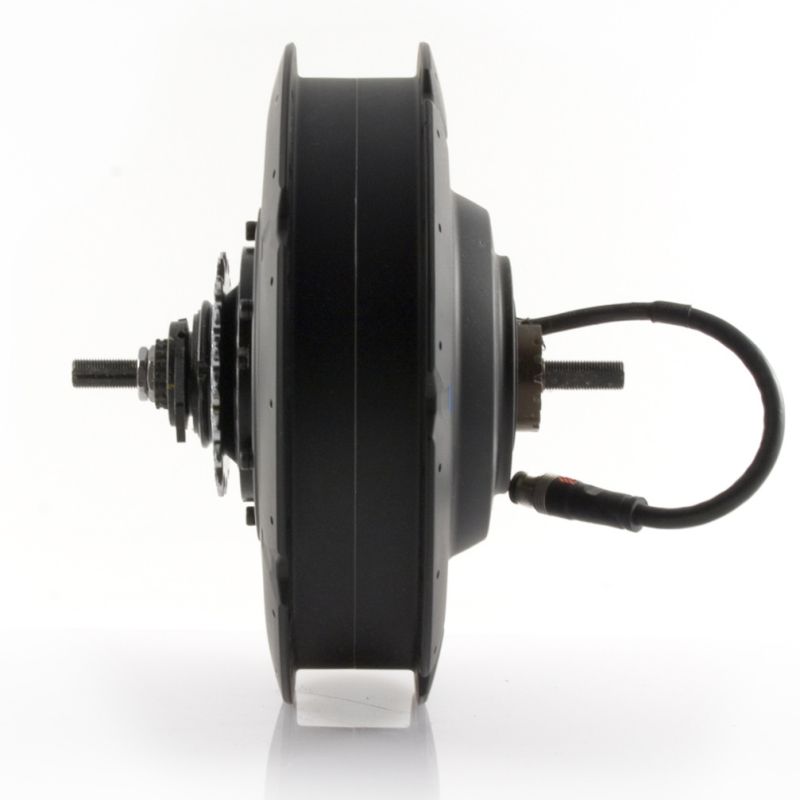

Direct Drive motor met 7Speed internal gears.
Write Your Own Review
Specifications
Product Details
- Additional weight on bike
- 7 kg
- Width
- 80 mm
- Diameter
- 228 mm
- Brand
- Crystalyte
- warranty extensible
- Yes
- Warranty
- 2 years, carry- in warranty
Technische eigenschappen
- Torque range
- 50 - 70Nm
- Maximum supported speed
- 25 km/hr
- Maximum current
- 20A
- Suitable for more than one person bicycle
- Yes
- Material
- Alu
- Directional rotation
- No
- Maximum load
- Extra high
- Suitable for torque at low speeds
- Yes, but not optimal
- Replaceable
- Yes
- Voltage range
- 24 - 36V
- Efficiency
- +85%
- Motor type
- Direct Drive, Outrunner
- Type controller
- Block and sinus wave
- Hall sensor
- Yes
- Rated motor RPM
- 235rpm
- Rated power
- 250Watt
- Number of magnets
- 46
Fysieke eigenschappen
- Possible number of gears
- 7
- Type of assembly
- Cassette
- Cable length
- 40cm
- Axle length
- 190mm
- Type of cable (wires)
- 9
- Axle diameter
- 14,5mm / 10mm
- Aantal tandwielen
- 1
- Mounting width motor
- 135mm / 140mm
- Color
- Black
- Suitable for brake type
- Cantilever brake, Disc brake (Shimano)
- Number of spoke holes
- 36
- Suitable for wheel sizes
- 20", 22", 24", 26", +28", 28"
- Suitable for Rollerbrake
- No
Geschikt voor
- Motor configured for
- (Sub) frame, Rear wheel
Gebruik
- Configuration for
- Bicycle, Bicycles and light vehicles, BSO bike, Cargobike, Child transport, Daycare bike, Hand bike, Hybrid bike, Mountain bike, Recumbent bike, Special Aid bike, Tandem bike
