Rover Motor in 24" ANDRA40 (RHT3525)

SKU

VFtMAN24VHTaWiel

Be the first to review this product

Special Price €549.00 Regular Price €661.00

Description

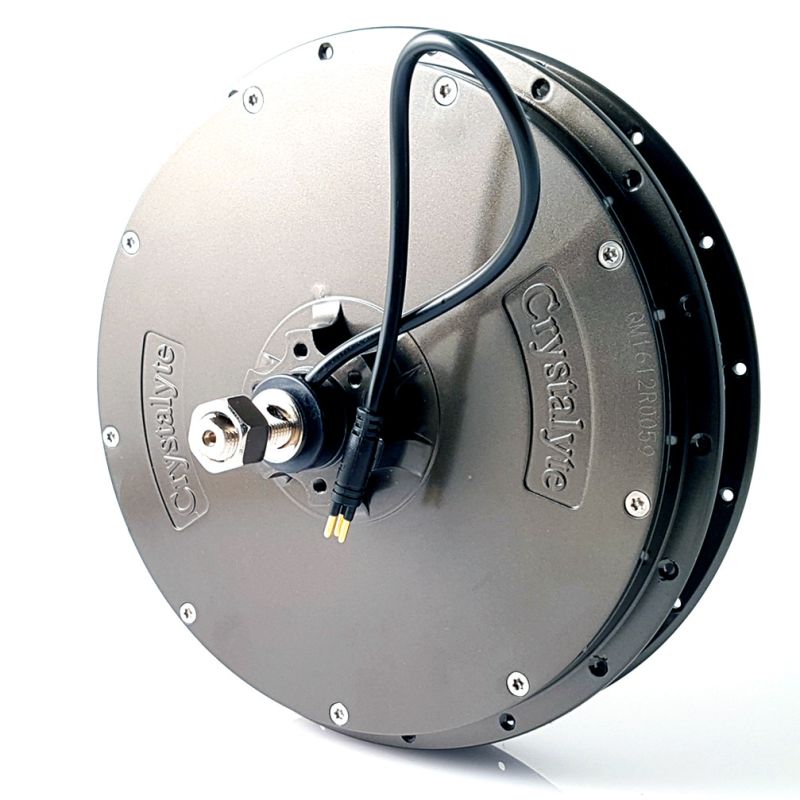

The Crystalyte front wheel hub motor is a hub motor with an extremely high torque (great force) . Suitable for all types of bicycles, but is especially into its own with a three -wheeler or bicycle that need more power . This hub motor comes without rims and spokes and is suited for the bike with rim- or disc brakes .

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Specifications

Product Details

Additional weight on bike: 7 kg
Width: 80 mm
Diameter: 228 mm
Brand: Crystalyte
warranty extensible: Yes
Warranty: 2 years, carry- in warranty

Technische eigenschappen

Torque range: 50 - 70Nm
Maximum supported speed: 25 km/hr
Maximum current: 20A
Suitable for more than one person bicycle: Yes
Material: Alu
Directional rotation: No
Maximum load: Extra high
Suitable for torque at low speeds: Yes, but not optimal
Replaceable: Yes
Voltage range: 24 - 36V
Efficiency: +85%
Motor type: Direct Drive, Outrunner
Type controller: Block wave
Hall sensor: No
Rated motor RPM: 190rpm
Rated power: 250Watt
Number of magnets: 46

Fysieke eigenschappen

Possible number of gears: 9
Type of assembly: Pinion
Cable length: 40cm
Axle length: 190mm
Type of cable (wires): 8
Axle diameter: 14,5mm / 10mm
Mounting width motor: 135mm / 140mm
Color: Grey
Suitable for brake type: Cantilever brake, Disc brake (Shimano)
Number of spoke holes: 36
Suitable for wheel sizes: 20", 22", 24", 26", +28", 28"
Suitable for Rollerbrake: No

Geschikt voor

Motor configured for: (Sub) frame, Rear wheel

Gebruik

Configuration for: Bicycle, Bicycles and light vehicles, BSO bike, Cargobike, Child transport, Daycare bike, Hand bike, Hybrid bike, Mountain bike, Recumbent bike, Special Aid bike, Tandem bike
