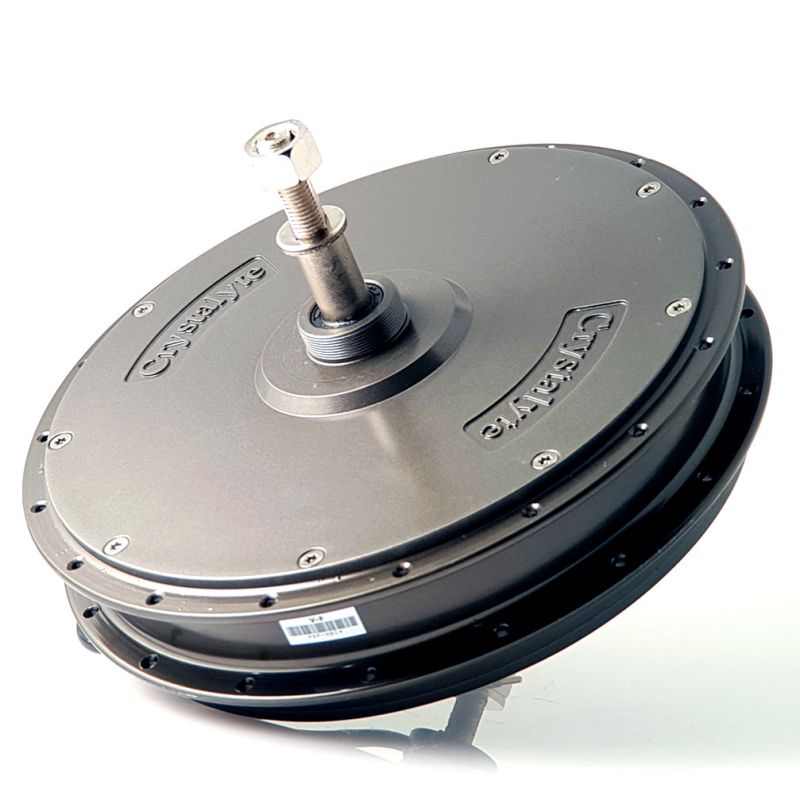

Crystalyte HS Hub Motor 1-9 Speed (RHS3540)

SKU
VFVHSA3540-1
€398.00
Add to Wish List
Description
The Crystalyte HS Hub Motor 1-9 Speed (RHS3540) is the motor with high torque (great force). This motor comes without rims and spokes and is suited for the bike with rim or disc brakes.
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Specifications
Product Details
Additional weight on bike
7 kg
Width
80 mm
Diameter
228 mm
Brand
Crystalyte
warranty extensible
Yes
Warranty
2 years, carry- in warranty
Technische eigenschappen
Voltage
36V
Torque range
40 - 55Nm
Maximum current
40A
Suitable for more than one person bicycle
Yes
Material
Metal
Directional rotation
No
Maximum load
Extra high
Suitable for torque at low speeds
Yes, but not optimal
Replaceable
Yes
Voltage range
24 - 72V
Efficiency
80%
Motor type
Direct Drive, Outrunner
Type controller
Block and sinus wave
Hall sensor
Yes
Rated motor RPM
+300rpm
Rated power
250Watt
Number of magnets
40
Fysieke eigenschappen
Possible number of gears
9
Type of assembly
Pinion
Cable length
40cm
Axle length
190mm
Type of cable (wires)
8
Axle diameter
12,5mm / 10mm
Mounting width motor
135mm / 140mm
Color
Grey
Suitable for brake type
Cantilever brake, Disc brake (Shimano)
Number of spoke holes
36
Suitable for wheel sizes
18", 20"
Geschikt voor
Motor configured for
(Sub) frame, Rear wheel
Gebruik
Configuration for
Recumbent bike
