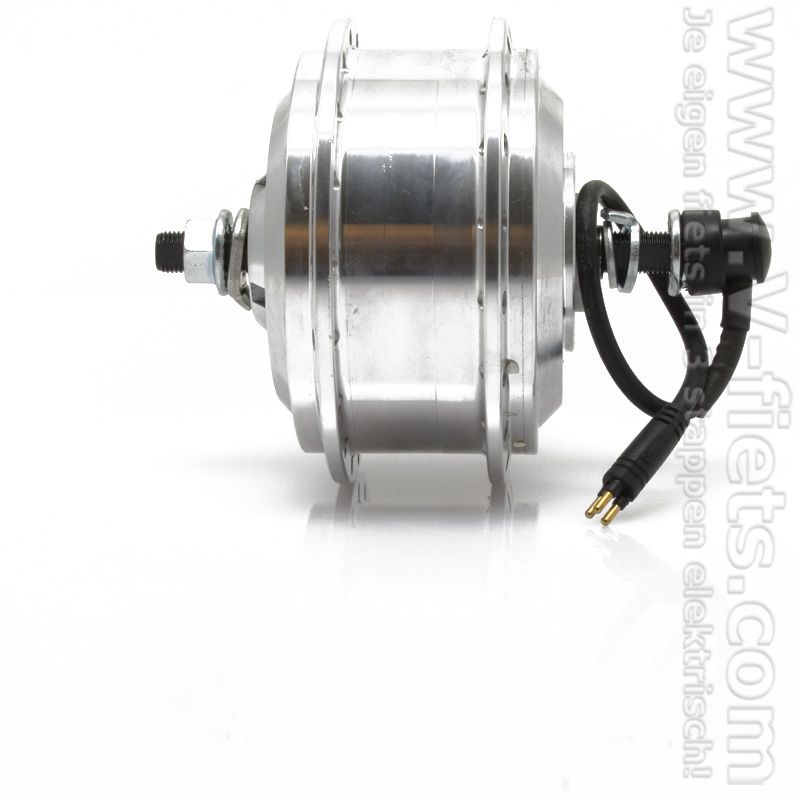

V-MINI-PRO-S2 Front Wheel Hub motor 300RPM
Safe & Secure
Description
Hub motor: V-PRO-S2 MINI-motor, 300 RPM
V-MINI PRO-S2 is the perfect motor for long distance cyclist, the motor requires more than normal. Due to its lightweight design and lightweight freewheel mechanism senses the motor light, and thus achieves a higher range on one battery charge.
The V-MINI PRO-S hub motor is suitable for bikes with Shimano disc brakes, but also for bikes with rim brakes. Suitable for both light and heavy bikes. For example, a recumbent bike with small 16 inch wheels. The motor can be laced in Ryde rim or perhaps you want to use your own tire?
Write Your Own Review
Specifications
Product Details
- Additional weight on bike
- 2,4 kg
- Width
- 80 mm
Technische eigenschappen
- Torque range
- 30 - 50Nm
- Maximum current
- 20A
- Suitable for more than one person bicycle
- Yes
- Material
- Alu
- Directional rotation
- Yes
- Maximum load
- High
- Motor Torque
- 25Nm
- Suitable for torque at low speeds
- Yes
- Replaceable
- Yes
- Voltage range
- 24 - 36V
- Efficiency
- 81%
- Motor type
- Indirect Drive, Outrunner
- Type controller
- Sinus wave
- Hall sensor
- Yes
- Rated motor RPM
- 300rpm
- Rated power
- 250Watt
Fysieke eigenschappen
- Axle length
- 160mm
- Type of cable (wires)
- 3
- Axle diameter
- 12,5mm / 10mm
- Mounting width motor
- 100mm
- Suitable for brake type
- Cantilever brake, Disc brake (Shimano)
- Number of spoke holes
- 36
- Suitable for wheel sizes
- 12", 14", 16"
- Suitable for Rollerbrake
- No
Montagelocatie
- Mounting location
- Front wheel
Geschikt voor
- Motor configured for
- Front wheel
Gebruik
- Configuration for
- 3-wheeler, Bicycle, Bicycles and light vehicles, Bike courier, Child bike, Granny bike, Hybrid bike, Mountain bike, Race bike, Recumbent bike, Special Aid bike, Sports bike, Tandem bike
