V-MINI Front Hub Motor Roller Brake 190RPM (on Sale, No warranty)
Safe & Secure
Description

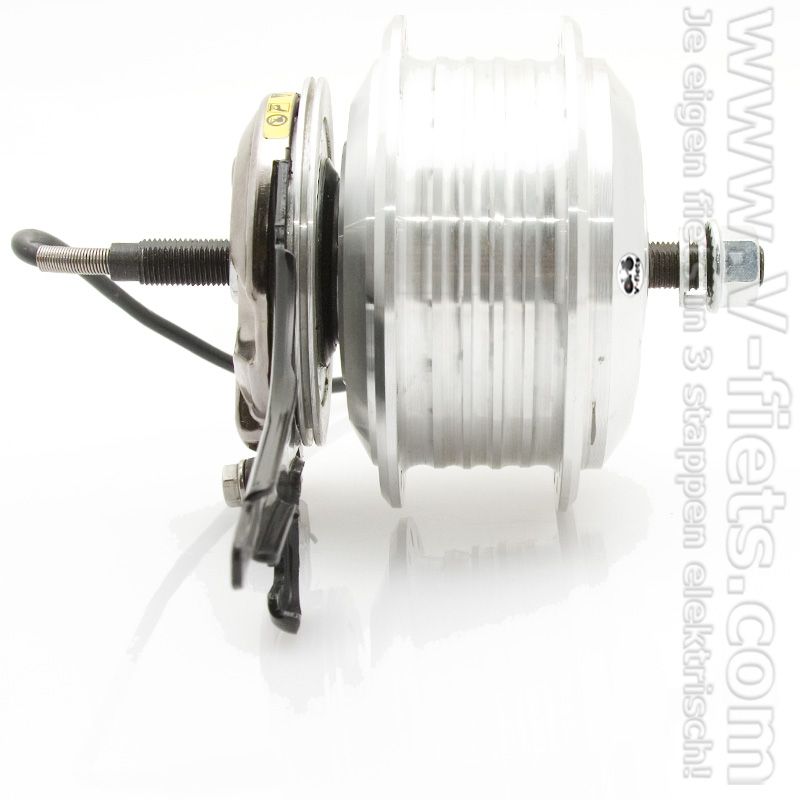

Hubmotor: V-motor with MINI roller brake connector 190 RPM
The Q-mini motor , 250 watt, 190 RPM, is in many ways a great motorbike. Important to mention is that this motor is suitable for bicycles with a roller brake. The V-MINI motor is 80 mm wide so there is plenty of room for the roller brake. If you have a bike with rim brakes. Then this motor for you.
The V-MINI motor is in many ways a very fine motor. First, because this motor is completely silent. The motor has no gears and that often as the perpetrator of a humming noise.
In addition, the motor is light in weight, about 2 kg. And the motor is barely noticeable in the rim. It looks very natural.
Important to note is that the motor has a freewheel. If you cycle faster on its own strength exceeding 25 kilometers per hour, you can. The motor does not in any way against it.
The hub motoris ideal for people who may have good bikes. They use the extra power to increase their reach or with tremendous headwinds still make sense to take the bike.
We can lacing motor before a rim Ryde (Rigida), but if you prefer the motor in your own rim laced want then that's possible too.
(This product will no longer be serviced by V-fiets. This product is therefor on sale and sold without warranty.)Write Your Own Review
Customer Reviews
-
Betrof reparatie van motorKan toch gezien worden aan het aantal starren!
Posted on
-
Onderdeel van elektrice fietsWe zijn geweldig vriendelijk geholpen door deskundige mensen
Posted on
Specifications
Product Details
- Additional weight on bike
- 2,2 kg
- Width
- 60 mm
- Warranty
- no warranty
Technische eigenschappen
- Voltage
- 36V
- Torque range
- 20 - 25Nm
- Maximum current
- 15A
- Suitable for more than one person bicycle
- Yes, but not optimal
- Material
- Alu
- Directional rotation
- Yes
- Maximum load
- Normal
- Suitable for torque at low speeds
- Yes
- Replaceable
- Yes
- Voltage range
- 24 - 36V
- Efficiency
- 80%
- Motor type
- Indirect Drive
- Type controller
- Block and sinus wave
- Hall sensor
- No
- Rated motor RPM
- 190rpm
- Rated power
- 250Watt
- Number of magnets
- 4
Fysieke eigenschappen
- Cable length
- 40cm
- Axle length
- 190mm
- Type of cable (wires)
- 3
- Axle diameter
- 12mm / 10mm
- Mounting width motor
- 100mm
- Color
- Transparant
- Suitable for brake type
- Roller brake (Shimano)
- Number of spoke holes
- 36
- Suitable for wheel sizes
- 12", 14", 16", 18", 20", 22", 24", 26", +28", 28"
- Suitable for Rollerbrake
- Yes
Geschikt voor
- Motor configured for
- Front wheel
Gebruik
- Configuration for
- Bicycle, Bike courier, Child bike, Folding bike, Granny bike, Hybrid bike, Mommy bike, Mountain bike, Race bike, Recumbent bike, Sports bike
