Fietsned Fietsfabriek KDV Componenten
Safe & Secure
Description

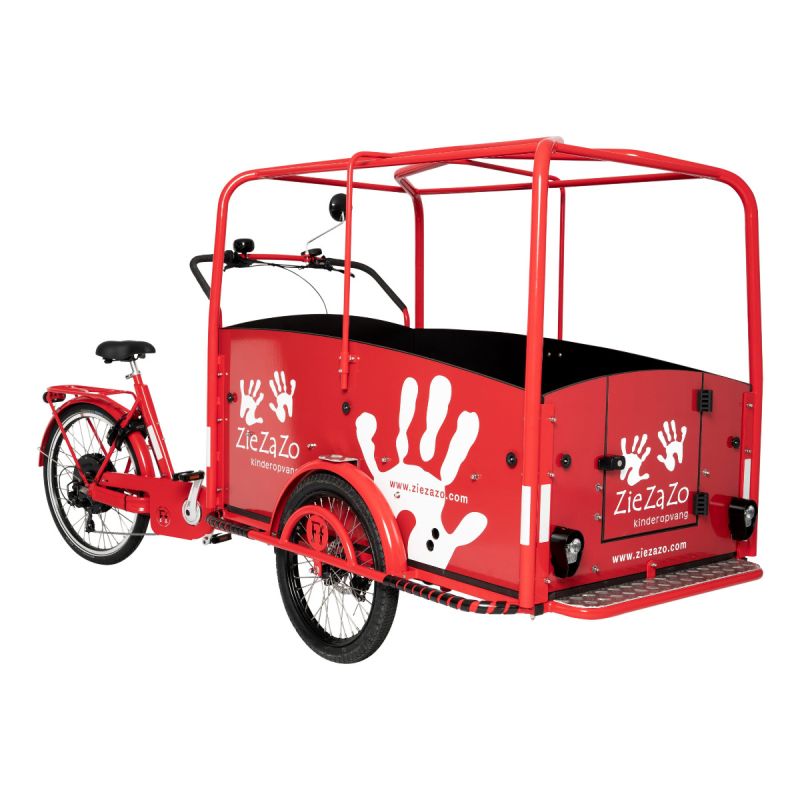

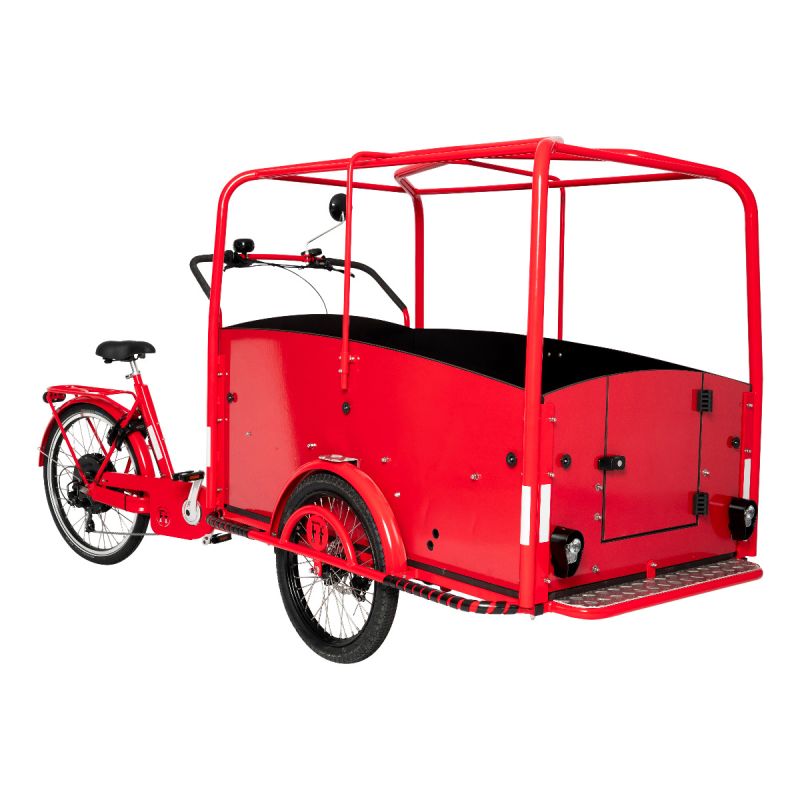

De Fietsfabriek KDV Bakfiets V-fiets E-drive set. Alle compontenten zijn los te bestellen of kunnen per stuk aangeklikt worden.
Write Your Own Review
Specifications
Product Details
- Warranty
- 2 years, carry- in warranty
Technische eigenschappen
- Torque range
- 50 - 70Nm
- Estimated range
- 30 km ( combined consumption)
- Maximum current
- 20A
- Material
- Alu
- Maximum supported speed
- 20 km/hr
- Motor Torque
- 60Nm
- Maximum load
- Normal
- Levels of assistance
- 6 + 1 levels
- Suitable for torque at low speeds
- Yes
- Motor type
- Brushless, Direct Drive, Outrunner
- Type controller
- Block and sinus wave
- Hall sensor
- Yes
- Rated power
- 250Watt
- Free wheel function
- No
- Voltage
- 36V
Fysieke eigenschappen
- Additional weight on bike
- 12kg
- Possible number of gears
- na
- Axle diameter
- 12,5mm / 10mm
- Mounting width motor
- 135mm / 140mm
- Removable battery
- Yes, with key lock
- Battery Mounting
- Bottle
- Suitable for brake type
- Cantilever brake, Disc brake (Shimano)
- Number of spoke holes
- 36
- Suitable for wheel sizes
- 26"
Montagelocatie
- Mounting location
- Front fork
Gebruiks eigenschappen
- Configuration for
- 2-wheeled cargo bike, BSO bike, Child transport
- Motor configured for
- Rear wheel
