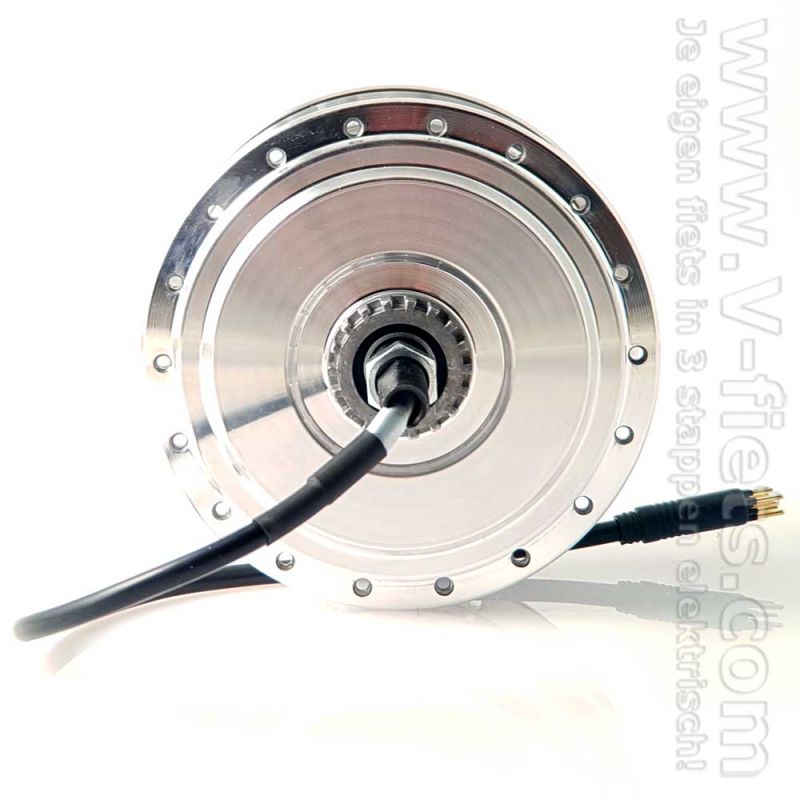

V-MINI-PRO Front Hub Motor RollerBr 235RPM



Availability: In stock

€199.00
€199.00
Specificaties

V-fiets-V-MINI-PRO Front Hub Motor RollerBr 235RPM-312

More Views

An motor with a powerful drive and a roller brake connection

Additional Information

General

Additional weight on bike 2,4 kg
Width 80 mm

Technical features

Torque range 30 - 50Nm
Maximum current 20A
Suitable for more than one person bicycle Yes
Material Alu
Directional rotation Yes
Maximum load High
Suitable for torque at low speeds Yes
Replaceable Yes
Voltage range 24 - 36V
Efficiency 80%
Motor type Brushless, Indirect Drive, Outrunner, Sensor less
Type controller Block and sinus wave
Hall sensor No
Rated motor RPM 235rpm
Rated power 250Watt

Physical properties

Cable length 40cm
Axle length 190mm
Type of cable (wires) 3
Axle diameter 12mm / 10mm
Mounting width motor 100mm
Color Alu-color
Suitable for brake type Roller brake (Shimano)
Number of spoke holes 36
Suitable for wheel sizes 12", 14", 16", 18", 20"
Suitable for Rollerbrake Yes

Suitable for

Motor configured for Front wheel

Application

Configuration for 2-wheeled cargo bike, Bicycle, Bike courier, Child bike, Folding bike, Granny bike, Hybrid bike, Mommy bike, Mountain bike, Race bike, Recumbent bike, Sports bike
