V-MINI Front Wheel Hub Motor 190RPM (on Sale, No warranty)



Availability: In stock

FROM €199.00

NOW €149.00

FROM €199.00

NOW €149.00

Specificaties

V-fiets-V-MINI Front Wheel Hub Motor 190RPM (on Sale, No warranty)-33

More Views

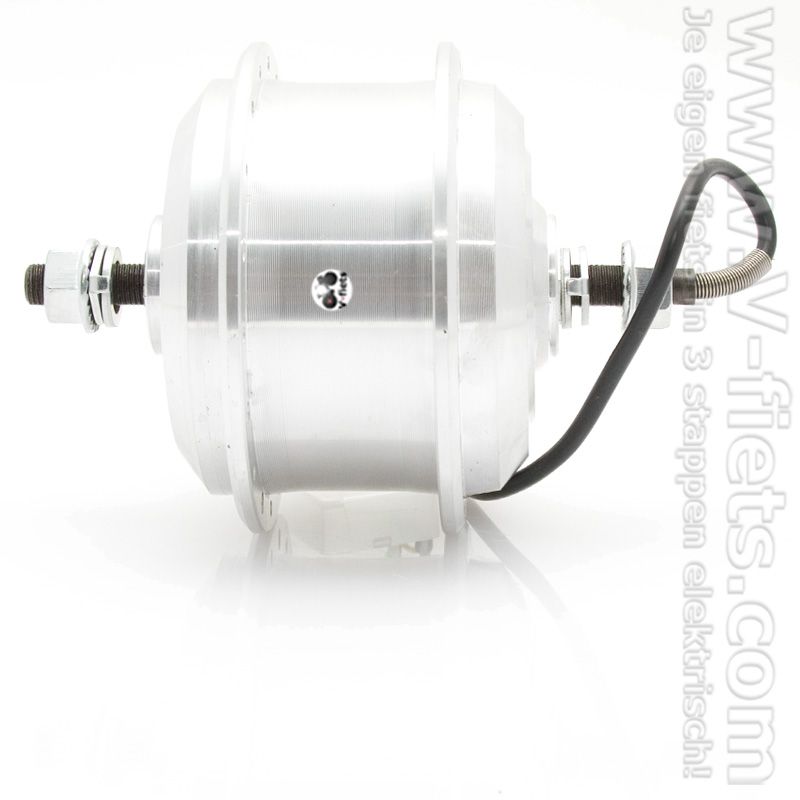

Hub motor: MINI V-motor, 190 RPM

This light motor only 2 kg is barely visible in the hub.
This 250 watt motor is completely silent, because the motor has no gears. That is a big advantage over other motors available.
Furthermore, this motor has a freewheel and this means that does not stop the motor when you cycle faster than 25 km / h.

Q-MINI motor is ideal for people who want to increase their reach. Think of people who use the bike for commuting or people who want to make long cycling tours.

hub motor is laced in a Ryde( formerly Rigida) rim, but there is also a possibility to spokes motor in your own rim or a special rim.

This motor is suitable for a bike with rim brake. If you have a bike with roller brake, please look at this hub motor . < / p>

(This product will no longer be serviced by V-fiets. This product is therefor on sale and sold without warranty.)

Additional Information

General

Additional weight on bike 2,2 kg
Width 80 mm
Warranty no warranty

Technical features

Voltage 36V
Torque range 20 - 25Nm
Maximum current 15A
Suitable for more than one person bicycle Yes, but not optimal
Material Alu
Directional rotation Yes
Maximum load Normal
Suitable for torque at low speeds Yes
Replaceable Yes
Voltage range 24 - 36V
Efficiency 80%
Motor type Indirect Drive
Type controller Block and sinus wave
Hall sensor No
Rated motor RPM 190rpm
Rated power 250Watt
Number of magnets 4

Physical properties

Cable length 40cm
Axle length 190mm
Type of cable (wires) 3
Axle diameter 12mm / 10mm
Mounting width motor 100mm
Color Transparant
Suitable for brake type Cantilever brake
Number of spoke holes 36
Suitable for wheel sizes 12", 14", 16", 18", 20", 22", 24", 26", +28", 28"
Suitable for Rollerbrake No

Suitable for

Motor configured for Front wheel

Application

Configuration for Bicycle, Bike courier, Child bike, Folding bike, Granny bike, Hybrid bike, Mommy bike, Mountain bike, Race bike, Recumbent bike, Sports bike
