V-MINI Front Hub Motor Roller Brake 175RPM (on Sale, No warranty)



Availability: In stock

FROM €228.00

NOW €178.00

FROM €228.00

NOW €178.00

Specificaties

V-fiets-V-MINI Front Hub Motor Roller Brake 175RPM (on Sale, No warranty)-32

More Views

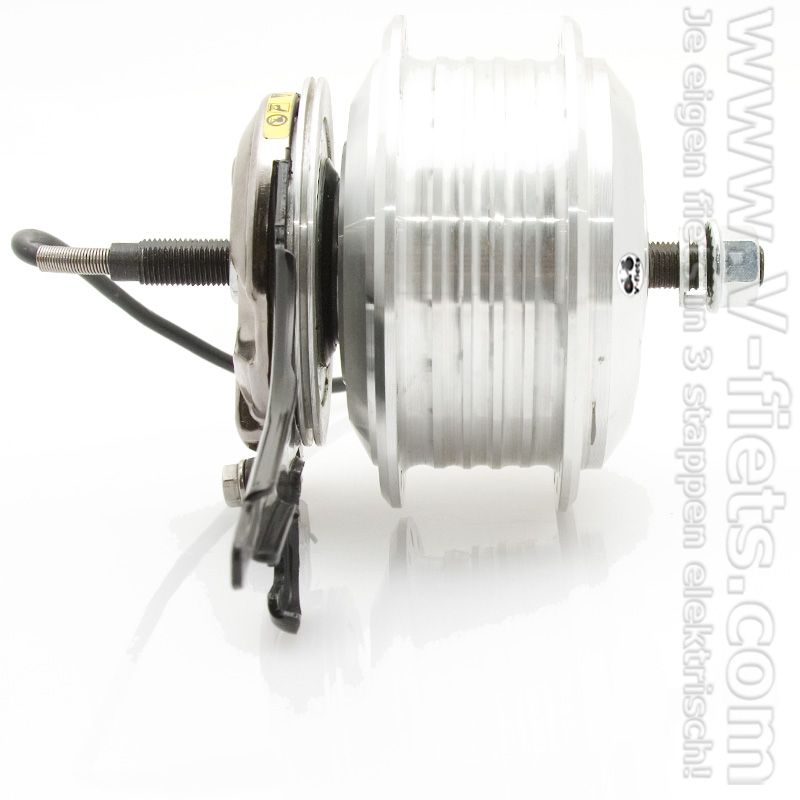

Hubmotor: V-motor with MINI roller brake connector 175 RPM

The V-MINI motor, 250 watt, 175 RPM is suitable for bicycles with a roller brake. The motor has a width of 80 mm so that the roller brake fine between fits.

The V-MINI motor is powerful enough for people who are perfectly able to bike, but want to expand their reach. Whether they want to use their bike for example to go to work. This motor is very suitable for this.

Also, the motor silently. Very nice course, because it do not all motors. The motor has no gears and ensures that the motor is silent. Another advantage.

hub motoris small and light weight (2 kg) so that the motor barely noticeable. A final important feature; the motor has a freewheel. And that means not stopping the motor when you cycle faster than 25 km per hour.

We can design the motor before lacing in Ryde (Rigida) rim. Another option is to spokes motor in your own rim or special rim.

Incidentally, this motor is also available for a bike with rim brake.

(This product will be discontinued. This product is therefor on sale and sold without warranty.)

Additional Information

General

Additional weight on bike 2,2 kg
Width 60 mm
Warranty no warranty

Technical features

Voltage 36V
Torque range 20 - 25Nm
Maximum current 15A
Suitable for more than one person bicycle Yes, but not optimal
Material Alu
Directional rotation Yes
Maximum load Normal
Suitable for torque at low speeds Yes
Replaceable Yes
Voltage range 24 - 36V
Efficiency 80%
Motor type Indirect Drive
Type controller Block and sinus wave
Hall sensor No
Rated motor RPM 175rpm
Rated power 250Watt
Number of magnets 4

Physical properties

Cable length 40cm
Axle length 190mm
Type of cable (wires) 3
Axle diameter 12mm / 10mm
Mounting width motor 100mm
Color Transparant
Suitable for brake type Roller brake (Shimano)
Number of spoke holes 36
Suitable for wheel sizes 12", 14", 16", 18", 20", 22", 24", 26", +28", 28"
Suitable for Rollerbrake Yes

Suitable for

Motor configured for Front wheel

Application

Configuration for Bicycle, Bike courier, Child bike, Folding bike, Granny bike, Hybrid bike, Mommy bike, Mountain bike, Race bike, Recumbent bike, Sports bike
