Electric Cargo Bike Conversion Kit (317Wh - 2W – GL)



Availability: In stock

€699.00
€699.00

V-fiets-Electric Cargo Bike Conversion Kit (317Wh 2W – GL)-33

More Views

Electric Cargobike Conversion Kit (317Wh - 2W)


Top quality for daily transportation

Complete and high quality Cargobike Electric conversion kit to mount directly on your cargo bike:

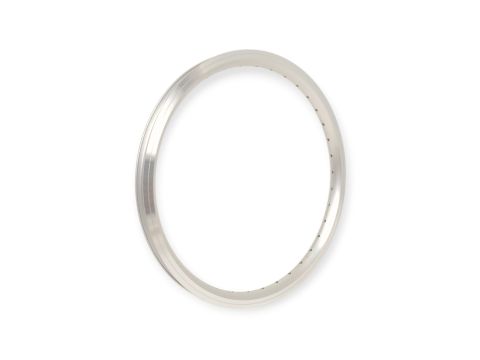

  • Strong & nbsp; 36V V MINI & nbsp; motor 20 inch wheel (white rim)
  • Rollerbrake connection & nbsp; the engine & nbsp;
  • Voltage Regulator 36V
  • Pedal sensor
  • Display with battery indicator
  • 6 + 1 modes with Start 'n Go function (for direct power)
  • cabling
  • Installation Instructions
  • Fasteners
  • Battery Li-ION 36V
  • Battery Charger 36V

    The set comes exclusive carrier bike


    Special & nbsp; features in this set:.

    • - Marathon 1 - Li-ION battery 36V 257Wh & nbsp; & nbsp; soft cover (Battery Case)
    • Li-ION & nbsp; 36V battery charger with active cooling .
    • S2 patented and completely silent motor drive
    • Eye installation methods for invisible operator .
    • 4.2 kg feather-light conversion kit (including battery and engine weight)


      Note on roller brake application: & nbsp;
      The motor is & nbsp; delivered without rollerbrake. You can & nbsp; & nbsp; rollerbrake & nbsp; transferring the original wheel to the new wheel

      If you have any questions please. & Nbsp; contact V-bike
      .

      Additional Information

      Technical features

      Motor Torque 20Nm
      Battery capacity 317Wh
      Maximum load Normal
      Levels of assistance 6 + 1 levels
      Motor type Brushless, Indirect Drive, Inrunner, Sensor less
      Type controller Block wave
      Hall sensor No
      Rated motor RPM 235rpm
      Rated power 250Watt
      Free wheel function Yes
      Voltage 36V

      Physical properties

      Type spaken Sapim G13, RVS (blank)
      Axle diameter 12,5mm / 10mm
      Sliding mechanism No
      Lockable housing No
      Mounting width motor 100mm
      Removable battery Yes, without key lock
      Color Black
      Suitable for brake type Roller brake (Shimano)
      Number of spoke holes 36
      Suitable for wheel sizes 20"

      Mounting location

      Mounting location Front wheel

      Usability

      Configuration for 2-wheeled cargo bike
      Motor configured for Front wheel
