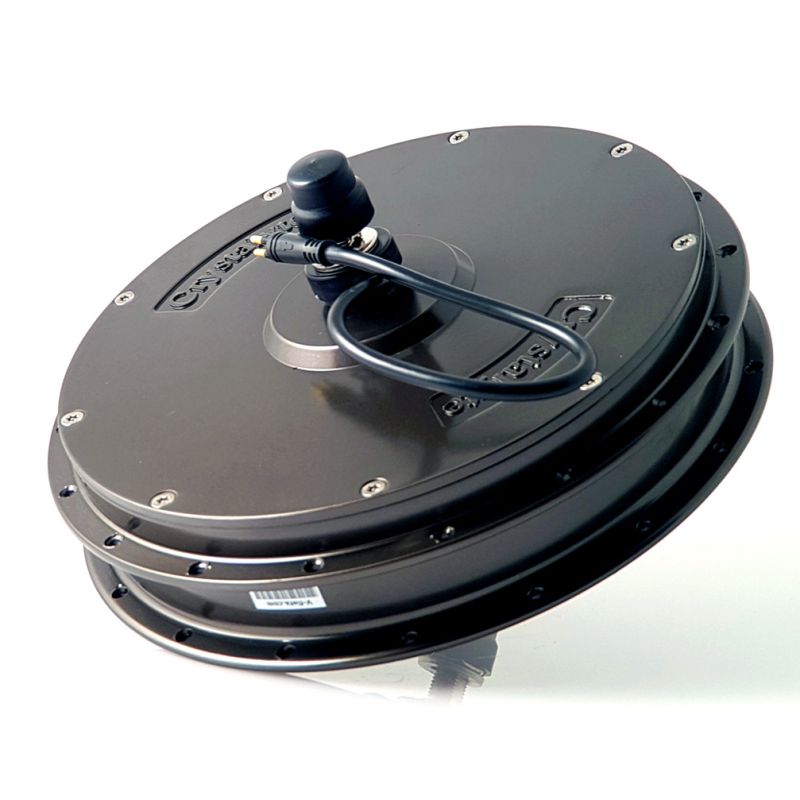

Crystalyte HS Front Wheel Motor (FHS3540)


Availability: In stock


V-fiets-Crystalyte HS Front Wheel Motor (FHS3540)-35

More Views

The Crystalyte HS (FHS3540) is the motor with an extremely high torque (great force).
Suitable for bicycles with a wheel diameter of 20 inches, such as that of a recumbent bike.

This motor comes without rims and spokes and is suited for the bike with rim or disc brakes.

Additional Information


Additional weight on bike 7 kg
Width 80 mm
Diameter 228 mm
Brand Crystalyte
warranty extensible Yes
Warranty 2 years, carry- in warranty

Technical features

Voltage 36V
Torque range 50 - 70Nm
Maximum current 40A
Suitable for more than one person bicycle Yes
Material Metal
Directional rotation No
Maximum load Extra high
Suitable for torque at low speeds Yes, but not optimal
Replaceable Yes
Voltage range 24 - 72V
Efficiency 81%
Motor type Direct Drive, Outrunner
Type controller Block and sinus wave
Hall sensor Yes
Rated motor RPM +300rpm
Rated power 250Watt
Number of magnets 40

Physical properties

Cable length 40cm
Axle length 160mm
Type of cable (wires) 8
Axle diameter 12,5mm / 10mm
Mounting width motor 100mm
Color Grey
Suitable for brake type Cantilever brake, Disc brake (Shimano)
Number of spoke holes 36
Suitable for wheel sizes 18", 20"

Suitable for

Motor configured for Front wheel


Configuration for Recumbent bike
