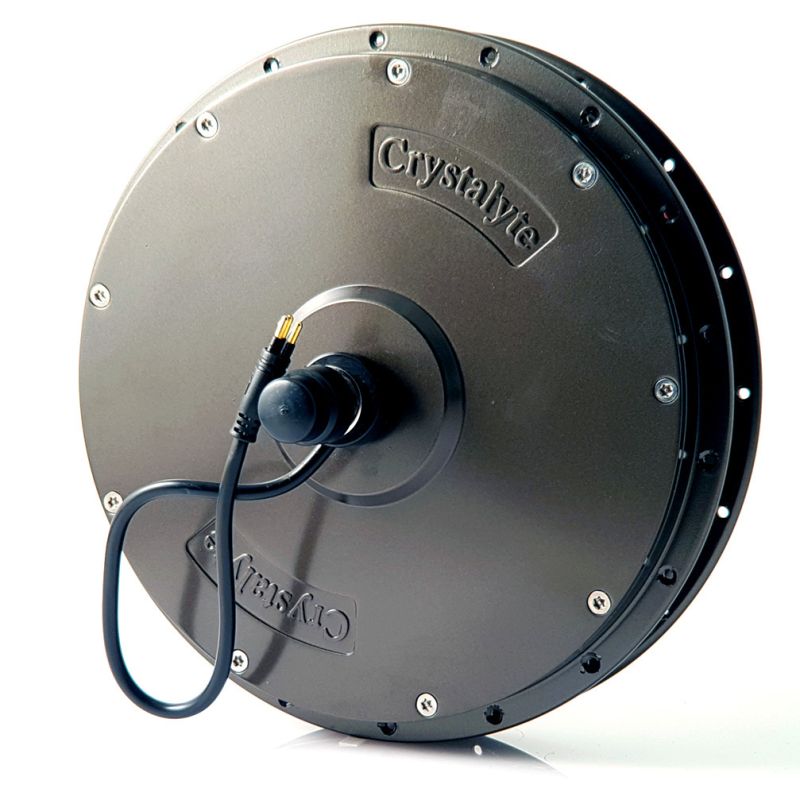

Crystalyte Front wheel Hub Motor (FHT3525)



Availability: In stock

€298.00
€298.00
Specificaties

V-fiets-Crystalyte Front wheel Hub Motor (FHT3525)-38

The Crystalyte front wheel hub motor is a hub motor with an extremely high torque (great force) .
Suitable for all types of bicycles, but is especially into its own with a three -wheeler or bicycle that need more power .

This hub motor comes without rims and spokes and is suited for the bike with rim- or disc brakes .

Additional Information

General

Additional weight on bike 7 kg
Width 60 mm
Diameter 228 mm
Brand Crystalyte
warranty extensible Yes
Warranty 2 years, carry- in warranty

Technical features

Torque range 30 - 50Nm
Maximum supported speed 25 km/hr
Maximum current 20A
Suitable for more than one person bicycle Yes
Material Alu
Directional rotation No
Maximum load Extra high
Suitable for torque at low speeds Yes, but not optimal
Replaceable Yes
Voltage range 24 - 36V
Efficiency +85%
Motor type Direct Drive, Outrunner
Type controller Block wave
Hall sensor No
Rated motor RPM 190rpm
Rated power 250Watt
Number of magnets 46

Physical properties

Cable length 40cm
Axle length 160mm
Type of cable (wires) 3
Axle diameter 12,5mm / 10mm
Mounting width motor 100mm
Color Grey
Suitable for brake type Cantilever brake, Disc brake (Shimano)
Number of spoke holes 36
Suitable for wheel sizes 20", 22", 24", 26", +28", 28"

Suitable for

Motor configured for Front wheel

Application

Configuration for 3-wheeler, Bicycles and light vehicles, Mountain bike, Recumbent bike, Tandem bike
